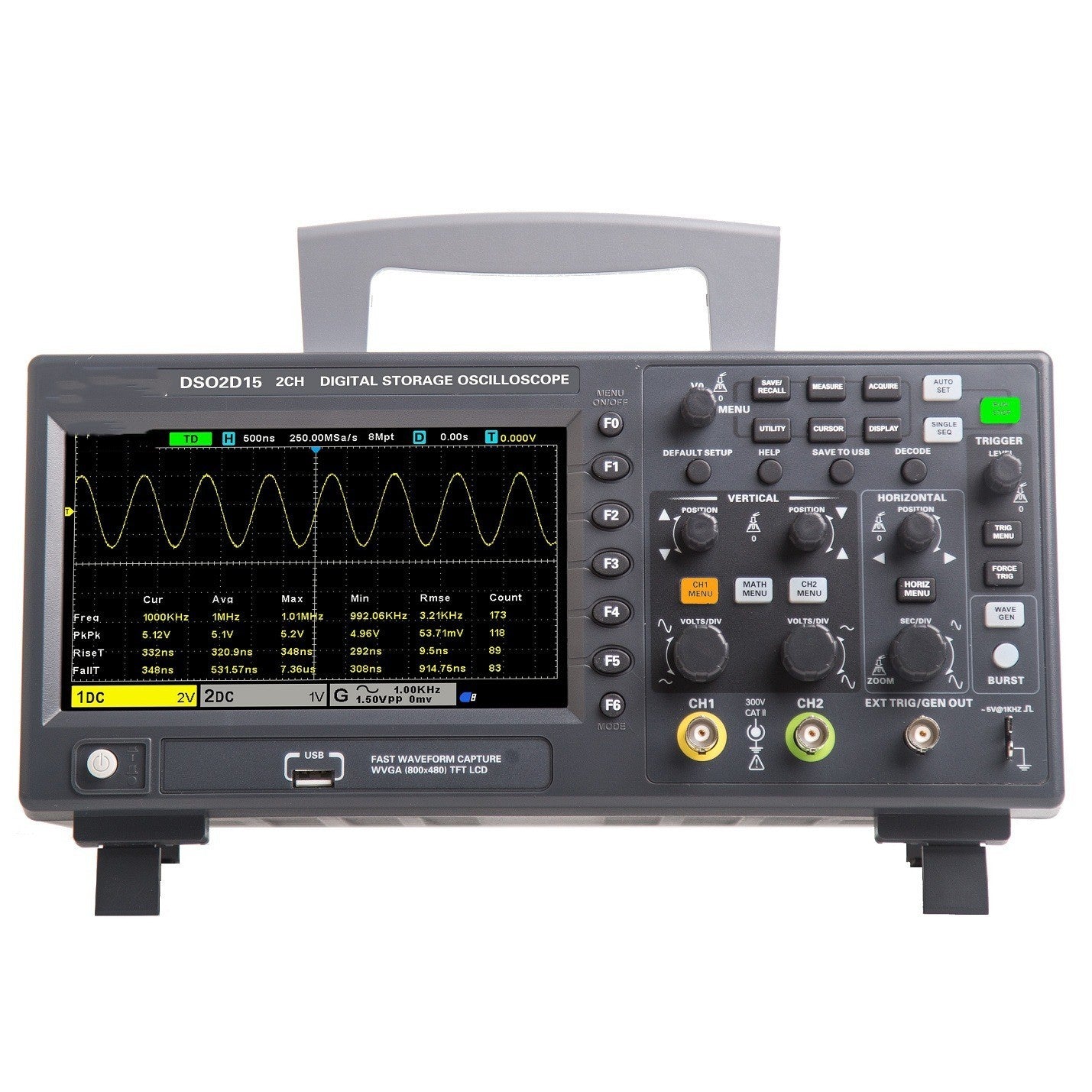

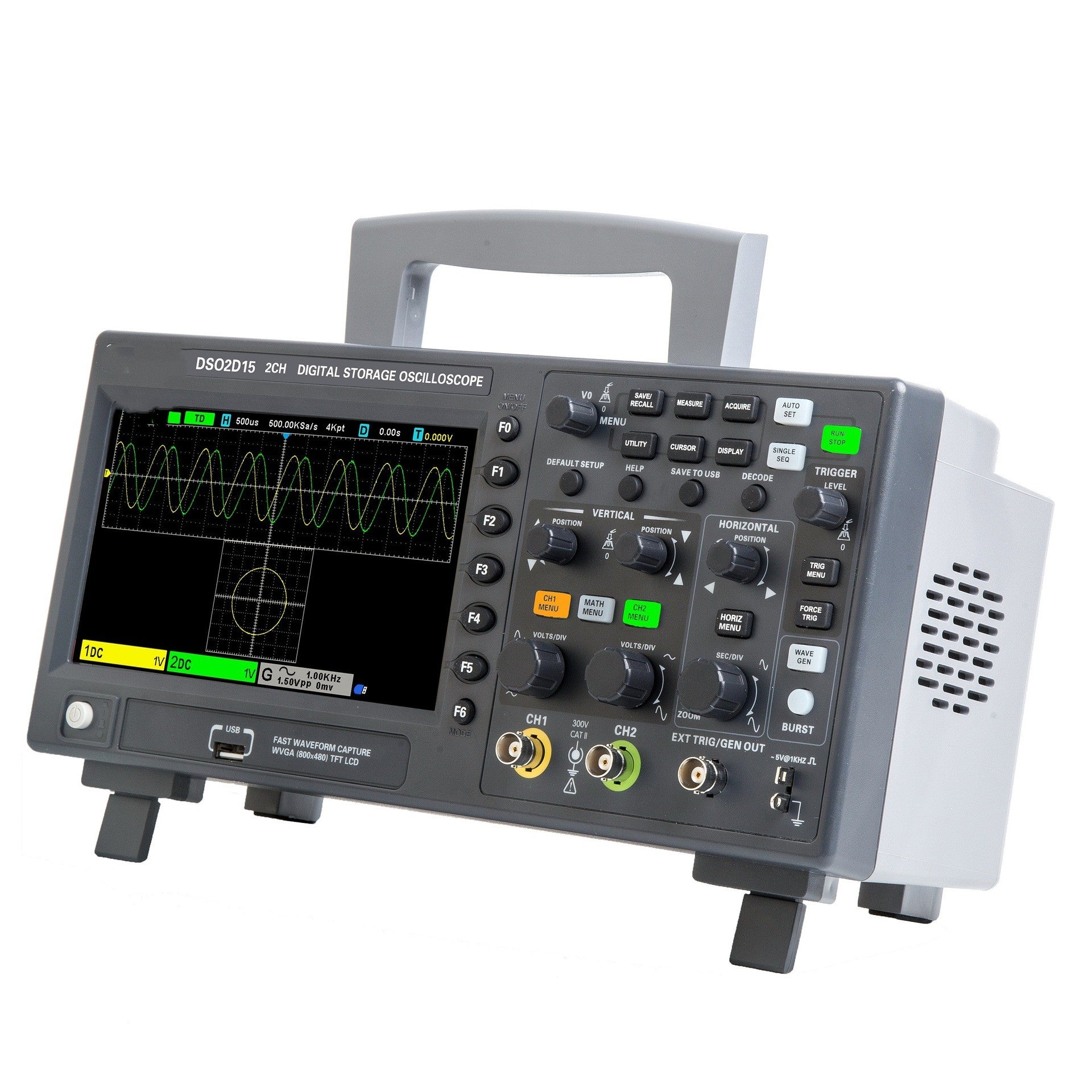

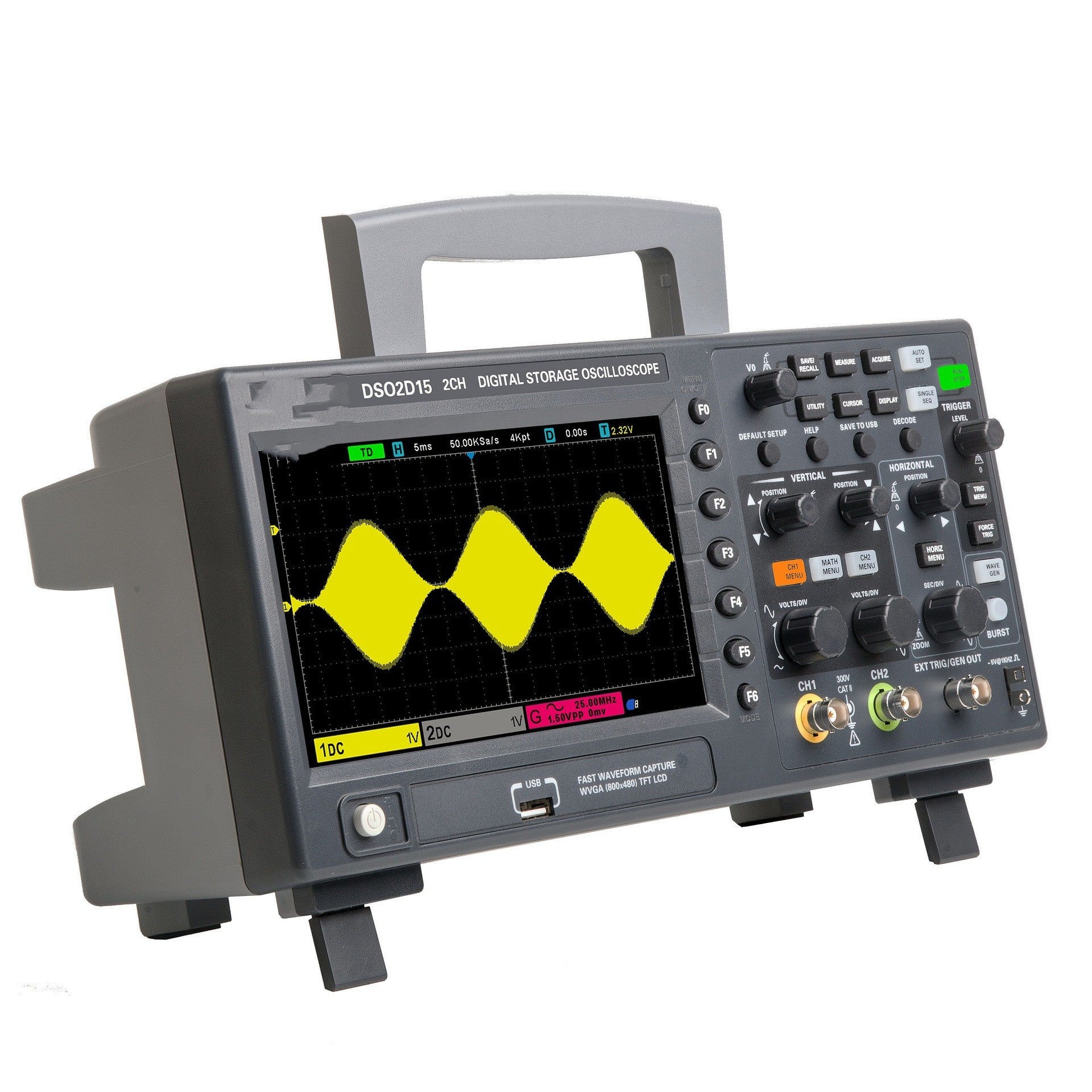

Digital Storage Oscilloscope DSO2D10 With Signal Source

Product information:

Type: digital oscilloscope
Bandwidth: 100 (MHz)
Sampling rate: 1 (GS/s)
Record length: 8M (k)
Overall dimension: 318 * 140 * 150 (mm)
Weight: 2.9 (kg)

Features:
1) Two channels, each with independent knob control;
2) Analog bandwidth: 100MHZ, 150MHz;
3) Sampling rate up to 1 GSa/s;
4) Storage depth 8Mpts;
5) Vertical gear: 2mV/div~10V/div;
6) Built-in one 25MHz signal generator;
7) Vertical resolution: 8 bit;
8) Trigger: edge, pulse, video, slope, timeout, window, code type, interval, underamplitude, UART, LIN, CAN, SPI, IIC;
9) Bus decoding and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN;
10) You can save settings, waveforms, reference waveforms, CSV, images, and other data formats.
11) 5-bit digital voltmeter and 6-bit hardware frequency meter functions;
12) Support 32 automatic measurement and statistical functions, and real-time statistics of minimum, maximum, standard deviation, and other statistical information;
13) Two sets of digital voltmeter functions;
14) Support threshold testing to achieve free measurement on screen;
15) Rich SCPI remote control instructions;
16) Provides multiple types of peripheral interfaces: USB Host/Device

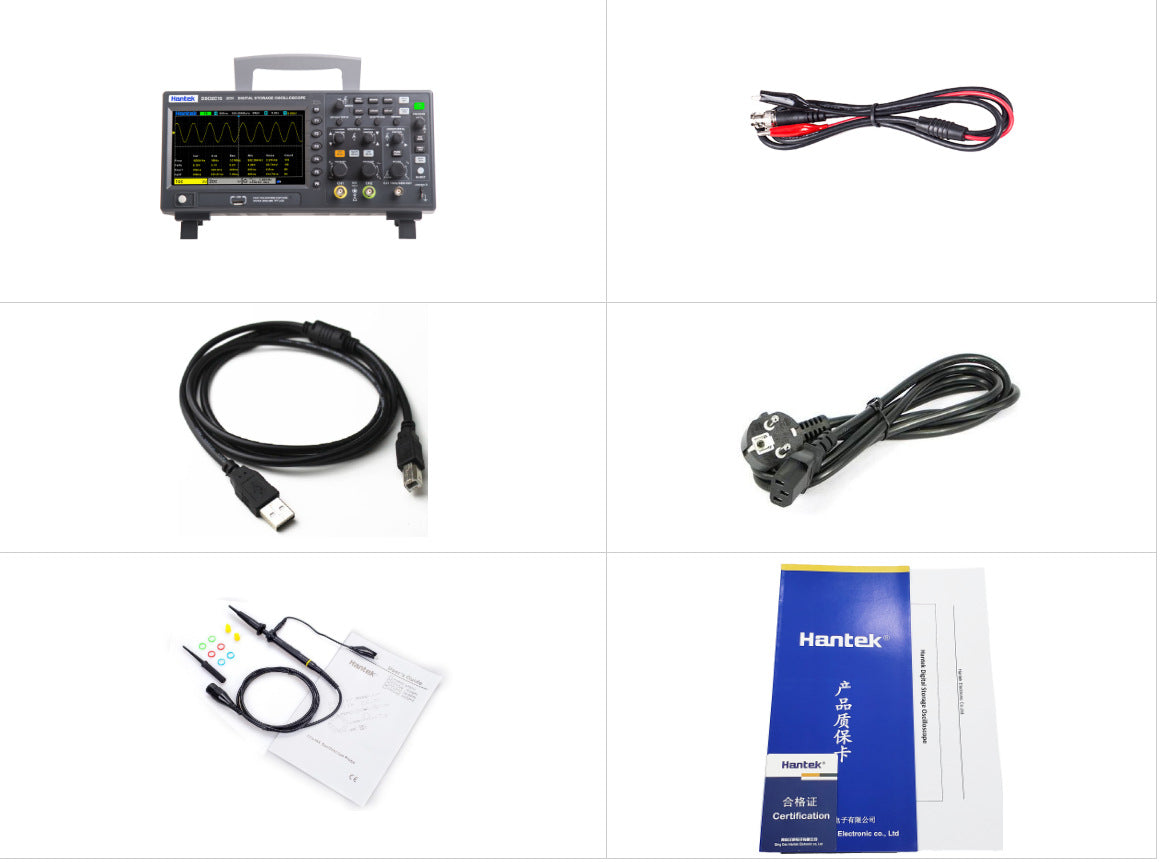

Packing list:

Digital oscilloscope * 1set (as shown below)
